R1WURKS DD4 High Torque/Speed Low-Profile Serv

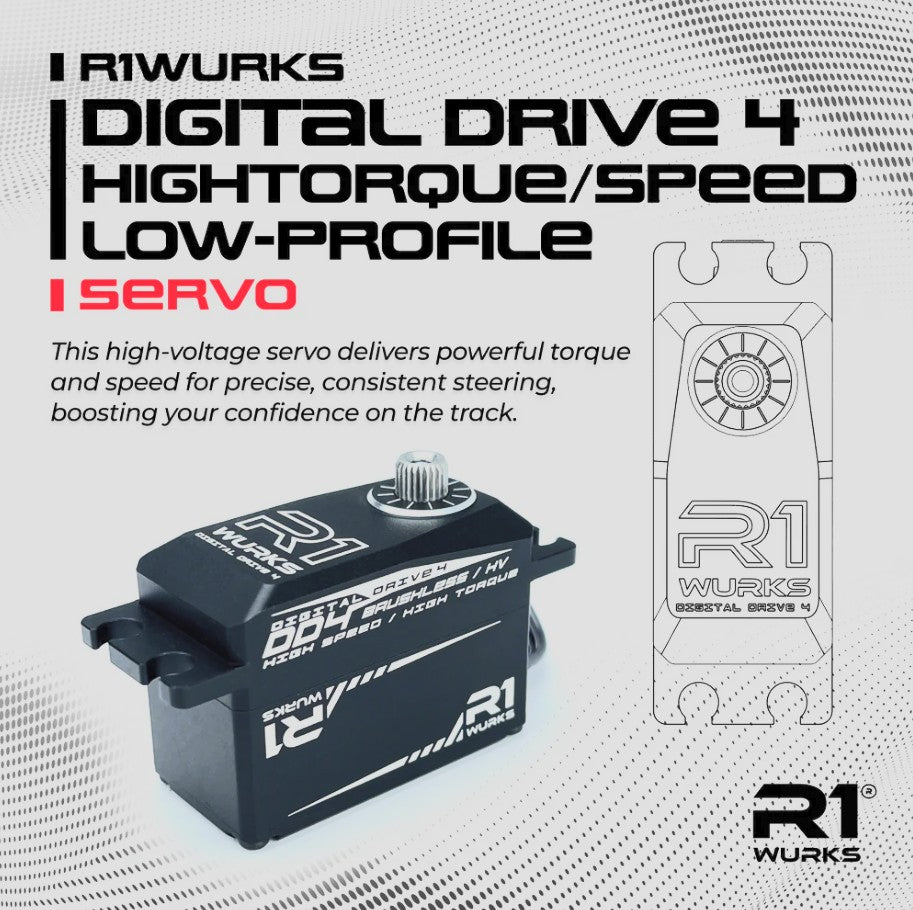

R1WURKS Digital Drive 4 [DD4] High Torque/Speed Low-Profile Servo

This high-voltage servo is essential for any racer aiming to enhance their on-track performance. It delivers massive torque and speed, providing the ultimate in steering control. Your steering inputs will not only feel more direct but also remain consistent under load. Whether you're maintaining a tight line through a sweeper or making rapid direction changes in a high-speed chicane, you'll feel more confident than ever with this servo doing the work.

Features:

• Machined aluminum billet case for strength and rapid heat dissipation
• Monochromatic wire coloration [Negative=Black, Positive=Black, Signal=Grey]
• Full stainless steel gear train
• Hi voltage capable
• Ultra high torque
• High Speed

Specifications:

• 80mm Wire length
• 25T Spline
• Brushless Motor
• Weight: 2.35oz
• 333Hz Refresh Rate
• FET Motor Drive
• Dual Ball Bearing
• Pulse Width Modulation Control
• Magnetic Sensor
• Full Aluminum Case
• Stainless Steel Gear Train
• Voltage: 4.8V to 8.4V

Torque:

• 20 kg-cm (278 oz-in) @ 4.8V
• 25 kg-cm (347 oz-in) @ 6.0V
• 30 kg-cm (417 oz-in) @ 7.4V
• 33 kg-cm (458 oz-in) @ 8.4V

Speed:

• 0.110sec/ 60° @ 4.8V
• 0.090sec/60° @ 6.0V
• 0.080sec/60° @ 7.4V
• 0.068sec/60° @ 8.4V

Fits:

Fits most applications. Please refer to the dimensions to ensure compatibility with your vehicle.

Note: There are no standard dimensions for what constitutes a low-profile servo. Therefore, it is essential to carefully review the specific dimensions of the servo below. Compare these measurements with the servo mounting area of your vehicle to ensure proper fit and compatibility:
